Grid Tie (Grid Connected) Solar PV System

In photovoltaic solar energy systems, light is converted into electrical energy that is used immediately or stored. In a grid connected photovoltaic system, the generated direct
current is transformed into an alternating current that can be used in the house immediately.
In case of a remainder of energy, it can be delivered into the grid.

Grid connected systems avoid the need for electricity storage in batteries by essentially using
the utility as a battery system. When your solar or wind system produces more electricity
than you need, the excess is sold back to the utility. When your system doesn't produce
enough electricity, you can draw power from the grid. All this is done automatically through
a net metering or net billing program. In most cases, a special or second utility meter will
be added to keep track of how much electricity has been sold to the utility.

Advantages of utility interconnection include having access to standard AC power all of the
time, not just when your system produces electricity, and avoiding the cost of a battery
back-up system. A disadvantage is the utility interconnection fee, which varies with each utility.
The size of a utility connected project depends on how much of your electric consumption
you want to displace and how much money you are able to invest.

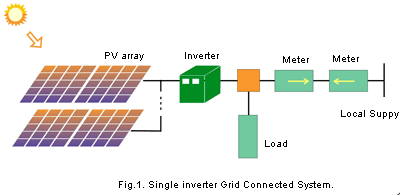

Typical grid tie solar PV diagram:

Grid Connected PV Systems Include:
1. PV Array or Generator: A number of PV panels connected in series and/or in parallel
giving a DC output out of the incident irradiance. Orientation and tilt of these panels are
important design parameters, as well as shading from surrounding obstructions. Replica Audemars Piguet Royal Oak Offshore watches

2. Inverter: A power converter that inverts ± the DC power from the panels into AC power.
The characteristics of the output signal should match the voltage, frequency and power
quality limits in the supply network.

3. Loads: Stands for the network connected appliances in the building that are fed from the
inverter, or, alternatively, from the grid.

4. Meters: They account for the energy being drawn from or fed into then local supply network.

5. Local Supply Network: A single or three-phase network managed by a Public Electricity
Supplier. The supply network acts both as a sink for energy surplus in the building or as
a backup for low local generation periods. Audemars Piguet Replica
