![](Images/VerticalLoop270x384.jpg)

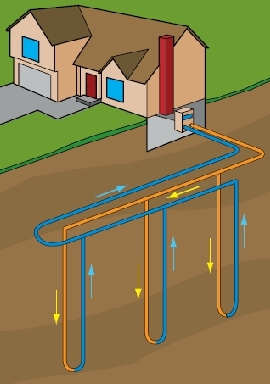

Vertical Loop System
![](Images/PondLoop162x87.jpg)
Pond Loop System
![](Images/HorizontalLoop162x88.jpg)
Horizontal Loop System
![](Images/SlinkyLoop163x89.jpg)
Slinky Loop System
![](Images/OpenLoop162x87.jpg)
Open Loop System
Types of Geothermal Systems
Geothermal technology harnesses the ground’s consistent temperature.
Heat pumps can be installed in a variety of
configurations, depending on your particular needs and the site conditions of your property.
A Closed Loop System is for you if:
• There is no readily available water source
• How it works – circulates a water and antifreeze solution through a closed loop of pipe
A Vertical Loop is for you if:
• Space is limited
A Pond Loop is for you if:
• The body of water has sufficient depth
• The pond is close to the house
A Horizontal or Slinky Loop is for you if:
• Land area is sufficient – about 1/4 to 3/4 acres is usually
enough for the average sized home
An Open Loop System is for you if:
• You have a readily available source of ground water such as a lake or well
• The water source has adequate capacity to support the system
• How it works – open pipes draw water in and discharge it, exchanging heat
