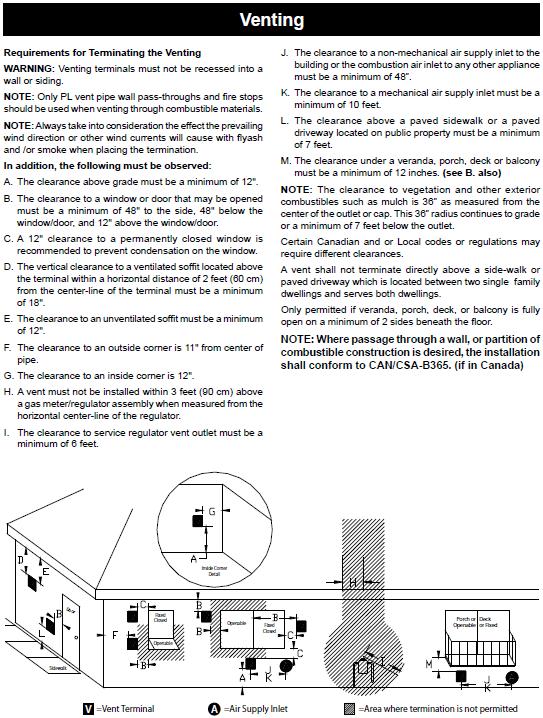

Requirements for Terminating the Venting
WARNING: Venting terminals must not be recessed
into a wall or siding.
NOTE: Only PL vent pipe wall pass-throughs
and fire stops should be used when venting through
combustible materials.
NOTE: Always take into consideration the effect
the prevailing wind direction or other wind currents
will cause with fly ash and /or smoke when placing
the termination.
In addition, the following must be observed:
A. The clearance above grade must be a minimum
of 18".
B. The clearance to a window or door that may
be opened must be a minimum of 48" to the side
and 48" below the window/door, and 18" above the
window/door.
(above window/door with outside air installed, 9?)
C. A 12" clearance to a permanently closed window
is recommended to prevent condensation on
the window.
D. The vertical clearance to a ventilated soffit
located above the terminal within a horizontal distance
of 2 feet (60 cm) from the center-line of the
terminal must be a minimum of 18".
E. The clearance to an unventilated soffit must
be a minimum of 12".
F. The clearance to an outside corner is 11"
from center of pipe.
G. The clearance to an inside corner is 12".
H. A vent must not be installed within 3 feet (90
cm) above a meter/regulator assembly when measured
from the horizontal center-line of the regulator. |
|
I. The clearance to service regulator vent outlet
must be a minimum of 6 feet.
J. The clearance to a non-mechanical air supply
inlet to the building or the combustion air inlet to
any other appliance must be a minimum of 48?.
K. The clearance to a mechanical air supply
inlet must be a minimum of 10 feet.
(with outside air installed, 6 feet )
L. The clearance above a paved sidewalk or a
paved driveway located on public property must be
a minimum of 7 feet.
M. The clearance under a veranda, porch, deck
or balcony must be a minimum of 12 inches.
NOTE: The clearance to vegetation and other
exterior combustibles such as mulch is 36? as measured
from the center of the outlet or cap. This 36?
radius continues to grade or a minimum of 7 feet
below the outlet.
Certain Canadian and or Local codes or regulations
may require different clearances.
A vent shall not terminate directly above a sidewalk
or paved driveway which is located between
two single family dwellings and serves both dwellings.
Only permitted if veranda, porch, deck, or balcony
is fully open on a minimum of 2 sides beneath
the floor.
NOTE: Where passage through a wall, or
partition of combustible construction is desired,
the installation shall conform to CAN/CSA-B365.
(if in Canada) |
|
