The Elmira Fireview Clearances

The Elmira Fireview Clearances

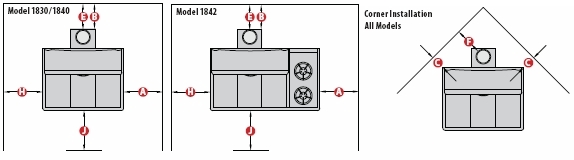

Model 1842 - 36"

Model 1842-G - 48"

Larger Image
(File Size = 136kb)

Model 1842	A	B	C	E	F	G	H	J	Measure
No Heat Shield & Single Wall Pipe	3	18	13	18	18	60	18	48	inches
No Heat Shield & Single Wall Pipe	76	457	330	457	457	1524	457	1219	mm.
With Heat Shield & Double Wall Pipe	3	3	10	6	6	60	18	48	inches
With Heat Shield & Double Wall Pipe	76	76	254	152	152	1524	457	1219	mm.

G = vertical distance from cooking surface to combustibles above the stove.

Note: A certified double-wall stove pipe must be used to maintain 6" clearance (dimension E) from pipe to combustibles. The approved stove pipe must extend from the chimney to the stove.

Note: These are factory-recommended clearances. Local, state or provincial building and fire codes take precedence and must be observed. Clearances are subject to change without notice.

When heat shield is installed, dimensions B and F are taken from heat shield. (?Heat shield? refers to complete stove/-pipe shield kit.)
Dimension E is taken from outside edge of pipe
