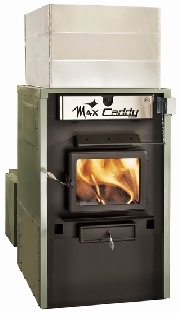

PSG Max Caddy Trio Wood-Oil-Electric Furnace Specifications Page

Type of fuel	Wood
Maximum input capacity	180,000 BTU (53 kW)
Maximum output capacity	137,970 BTU (41 kW)
Average output capacity	89,680 BTU (27 kW)
Blower	G-10 blower with 1/2 hp motor - theoretical 1780 CFM (max 0.20" WC) - 4 speeds
Loading capacity	Up to 90 lbs (41kg)
Efficiency	77 %
Color	Green
Exterior dimensions	30"W x 62"D x 50"H
Flue spigot diameter	6"
Recommended exhaust pipe diameter	6" if installed as wood or wood-electric combination 7" if installed as wood-oil combination
Type of chimney	2100°F (1150°C)
Firebox dimensions	20 3/8"W x 26 ¼"D x 14 ½" H
Maximum log length	25"
Door opening dimensions	15 11/16"W x 10"H
Type of door	Glass with cast iron frame
Hot air plenum dimensions	25 7/16"W x 32 1/8"D
Cold air plenum dimensions	19 15/16"W x 17 15/16"D
Ash drawer dimensions	11 15/16"W x 19 5/8"D x 2 5/8"H
Number of filters	1
Filters dimensions	16" x 20"
Minimum clearances (Front)	48"
Minimum clearances (Back)	24"
Minimum clearances (Sides)	6" (wood only) and 24" on the option side
Minimum clearances (Ducts)	6" for the first 6' with a screen at ¾" and 1" thereafter
Weight	650 lbs (295 Kg)
Warranty	Limited lifetime warranty
Test standard - safety	Can CSA B366.1, UL 391, CAN/CSA C22.2 no 236, UL 1995, CSA B140.4, UL 727
Test standard - emissions	CSAB415.1-10

ELECTRIC ELEMENT (OPTIONAL)

Recommended element	20 kW / 68 000 BTU
Maximum output - Other optional elements	25 kW / 85 000 BTU
Element location	Left or right

OIL BURNER (OPTIONAL)

Input #1	91,000 BTU
Input #2	120,000 BTU
Burner orifice at input #1	0.65 70^oW (Beckett) / 0.50 70^oW (Riello)
Burner orifice at input #2	0.65 70^oW (Beckett) / 0.65 70^oW (Riello)
Pump pressure at input #1	100 PSI (Beckett) / 150 PSI (Riello)
Pump pressure at input #2	175 PSI (Beckett) / 165 PSI (Riello)
Standard burner	Beckett
Other approuved burners	Riello
Efficiency at input #1	Beckett (85%) / Riello (87%)
Efficiency at input #2	Beckett (83%) / Riello (85%)
Burner location	Right or left
Optional insulated vestibule (Burner)	No
Recommended exhaust pipe diameter	5" (127mm)
Exhaust pipe location	Left or right

Optional hot water loop kit for pre-heating domestic water

Optional fresh air intake adapter

Connection location	Right
Connecting pipe diameter	5"
