AP Efficiency - Part 4 Collector Comparison

When comparing collectors, it is better to use efficiency values from the normal operating range rather than peak efficiency levels, as this will better represent average annual performance. The "normal operating range" refers to the normal Delta-T range (Tm - Ta) that the collector is exposed to. For domestic water heating an average value of 30-40^oC is common.

Every region has different ambient temperatures and different insolation levels, but for the purpose of a comparison we can use a "standard" set of environmental conditions.

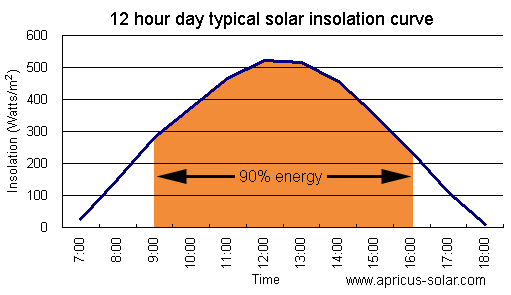

In a moderate climate, an "average" intermittently clouded day in Spring can provide an insolation level of 3.5kWh/m²/day. The solar radiation distribution throughout the day from sunrise to sunset is displayed in the following graph.

Apricus solar collectors and solar water heating systems

It can be seen that 90% of the radiation falls between 9:00am and 4:00pm with an average insolation level during this period of 400W/m².

We now have a full set of factors in order to do a comparison:

1. Insolation Level = 400Watts/m² (G)

2. (Tm-Ta) = 35K

3. (Tm-Ta)/G = 0.0875 (x)

4. Apricus AP:
- Performance variables: h0 = 0.717, a1 = 1.52, a2 = 0.0085 (SPF)
- IAM adjustment = 1.0 (K)

5. Leading Flat Plate:
- Performance variables: h0 = 0.8, a1 = 2.99, a2 = 0.023 (SPF)
- IAM adjustment = 0.83 (K)

Remember the formula from earlier? We just need to add the IAM adjustment (K).

The calculations for the two collectors are therefore as follows.

AP: Performance = 1.0 * 0.717 - (1.52 * 0.0875) - (0.0085 * 400 * 0.0875²) = 55.8%

FP: Performance = 0.83 * 0.8 - (2.99 *0.0875) - (0.023 * 400 * 0.0875²) = 33.2%

Given the set of variables used, the AP solar collector provides 40% greater heat output for a given absorber area.

The same calculation can be completed with other collectors using performance variables and IAM values.
