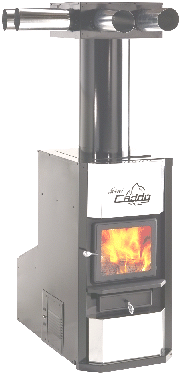

PSG Mini-Caddy Wood & Wood / Electric Furnace Specifications Page

Indoor Wood Furnace

Wood & Coal Furnace

Wood, Coal & Oil Furnace

Wood & Electric Furnace

Wood & Fuel Oil Furnace

Wood, Oil  & Electric Furnace

Larger Image
(File Size = 335kb)

Pricing

Made in Canada

PSG Wood Furnace Line

(PDF File Size = 158kb)

Type of fuel

Wood

Maximum input capacity

75.000 BTU (21,6 kW)

Maximum output capacity

63,750 BTU (18,7 kW)

Average output capacity

41,440 BTU (12,2 kW)

Maximum output - EPA test wood

25,500 BTU (7,5 kW)

Blower

1/4 HP Direct-drive (4 speeds)

Loading capacity

Up to 40 pounds (18 kg)

Color

Black

Exterior dimensions

23 1/4"W x 39 3/4"D x 45 5/8"H

Flue spigot diameter

6"

Recommended exhaust pipe diameter

6"

Type of chimney

2100°F (1150°C)

Recommended chimney diameter

6"

Firebox dimensions

14"W x 19 3/8"D x 12"H

Maximum log length

18 3/8"

Door opening dimensions

13 1/2"W x 9 5/8"H

Type of door

Glass with cast iron frame

Hot air plenum dimensions

12" x 12" *see options

Cold air plenum dimensions

22 3/8"W x 13 5/8"D *see options

Ash drawer dimensions

11 3/4"W x 12"D x 2 5/8"H

Number of filters

1

Filters dimensions

15"W x 20"D x 1"H

Minimum clearances (Front)

48"

Minimum clearances (Back)

24" recommended for servicing

Minimum clearances (Sides)

24" recommended for servicing

Minimum clearances (Ducts)

3" for the first six feet and 1" thereafter

Weight

405 lbs (184 kg)

Warranty

Limited lifetime warranty

Test standard - safety

Can CSA B366.1-M91, CSA C22.2 No. 236, UL 1995, UL391 3e Ed. rev. 1999

Test standard - emissions

E.P.A.


ELECTRIC ELEMENT (OPTIONAL)

Recommended element

11.25 kW

Element location

Left

Recommended clearance (Maintenance)

24"

Mini-Caddy Documentation PSG Mini-Caddy Documentation (Brochure, Manual & Warranty)
